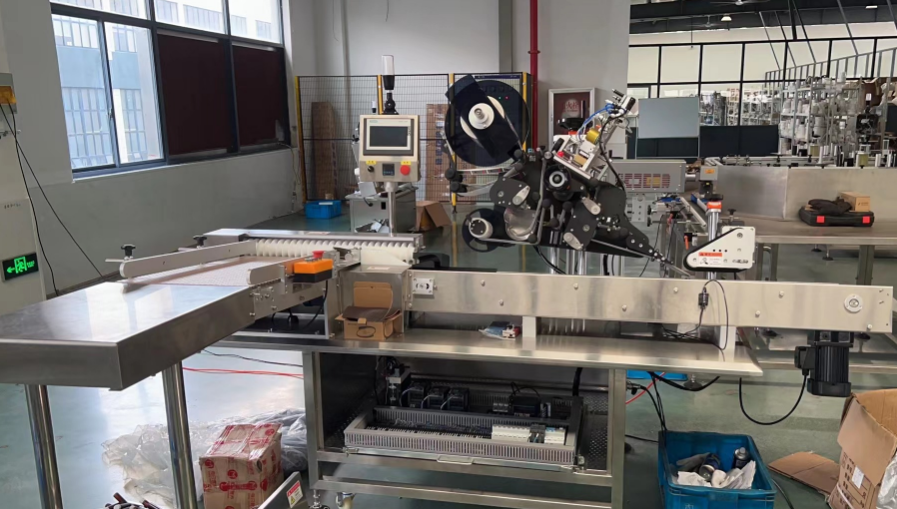

XT-2610B
High-Speed Horizontal Labeling Machine
Horizontal conveying and labelling for small, unstable round products such as oral-liquid bottles, injection containers and similar items.
Documented specifications
- Documented speed
- 60–350 products/min
- Accuracy
- ±1 mm
- Product range
- 13–22 mm diameter; 40–110 mm height
- Label range
- 10–100 mm length; 10–80 mm height
- Power
- AC 220 V, 1,500 W
- Machine dimensions
- 2,000 × 850 × 1,600 mm
Specifications are reference ranges from available Toprint machine documents. Actual performance depends on product, label, environment, setup and final machine configuration.
Application fit
- Small round containers
- Oral-liquid and injection bottles
- Batteries and similar cylindrical products
Configuration highlights
- Horizontal roller conveyor
- Siemens PLC and touch screen
- Servo-driven labelling
- Photoelectric product and label detection
