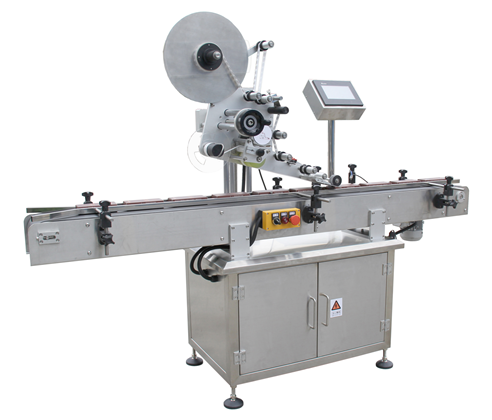

PM-100
Top-Side Plane Labeling Machine
Automatic top-surface labelling for compatible flat products, boxes, pouches and containers.
Documented specifications
- Documented speed
- 40–120 products/min
- Accuracy
- ±1 mm
- Product range
- 20–300 mm length; 20–250 mm width; 15–250 mm height (standard configuration)
- Label range
- 20–200 mm length; 20–150 mm height
- Power
- 220 V, 800 W
- Machine dimensions
- 1,700 × 550 × 1,800 mm
Specifications are reference ranges from available Toprint machine documents. Actual performance depends on product, label, environment, setup and final machine configuration.
Application fit
- Cartons and boxes
- Flat containers
- Pouches and stationery products
Configuration highlights
- Top-surface application
- Adjustable conveyor
- Touch-screen controls
- Product-sample assessment before final configuration
